Seamless transitions between conveyors are ensured with custom-fitted transition sheets. In the standard setup, the tensioning station at the head drives and reversing stations features bilateral tensioning for enhanced stability. For center drives, the system employs single-sided tensioning, simplifying adjustment while maintaining reliable performance.

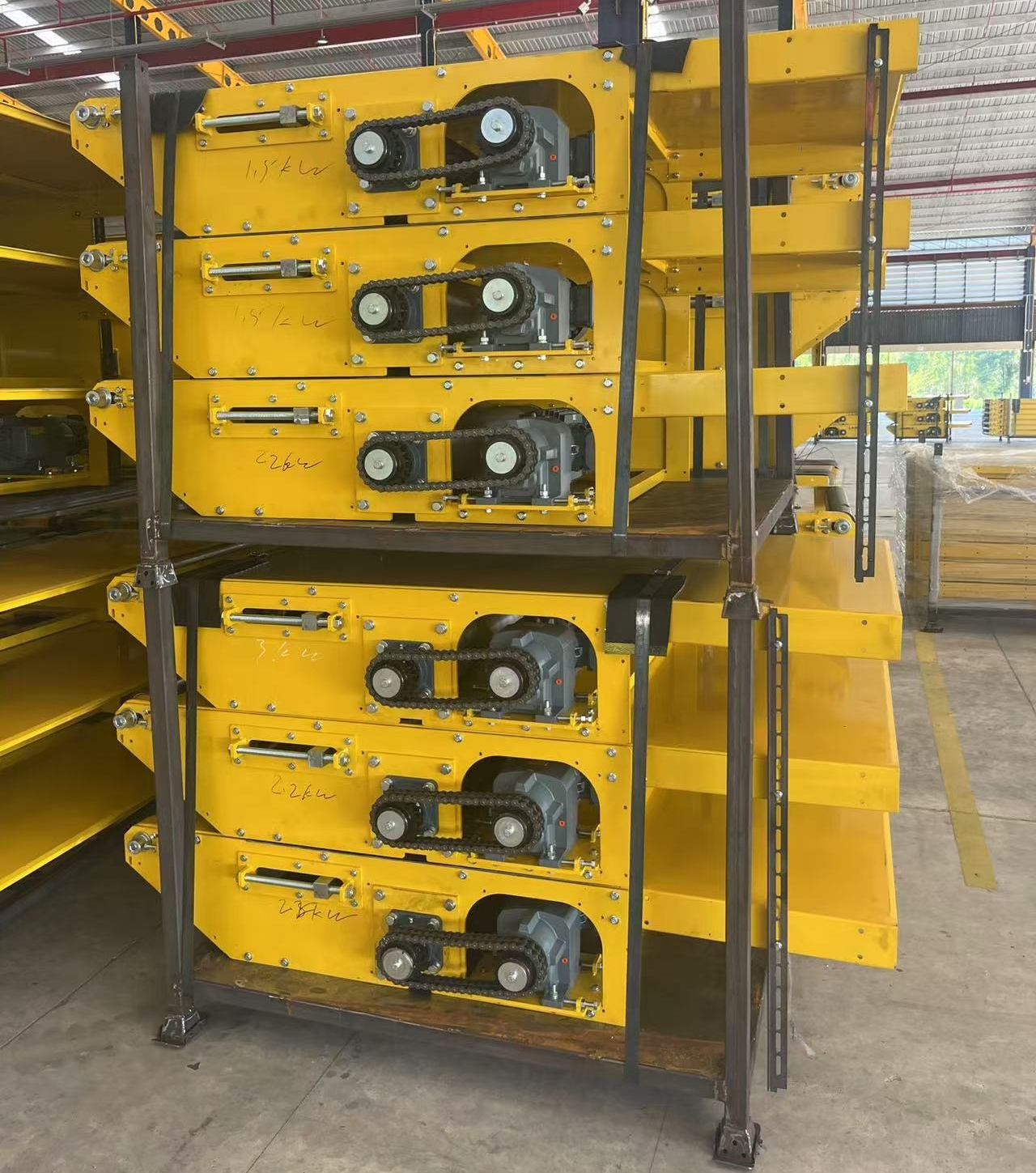

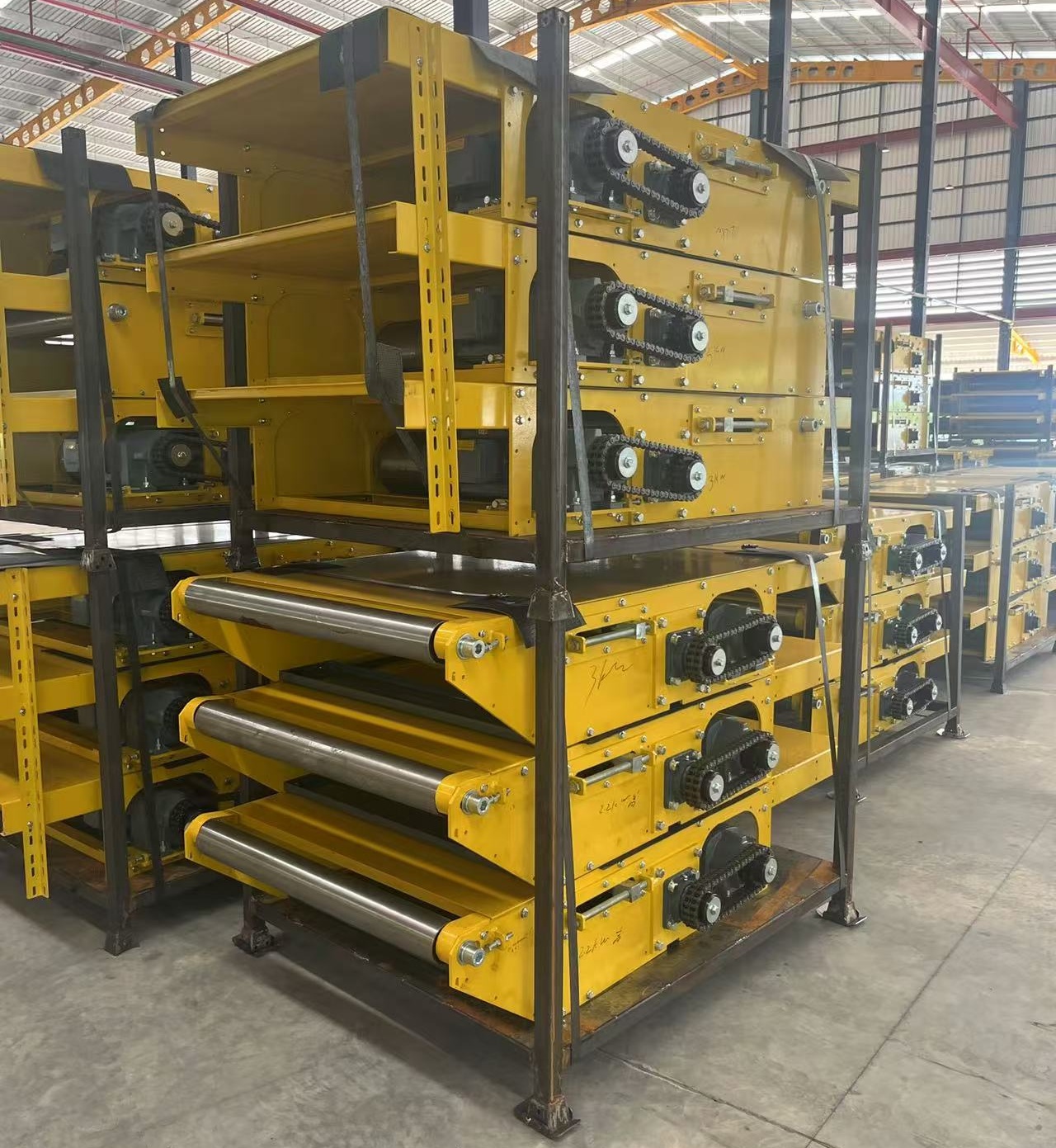

Whether straight, inclined, or declined, the Shuangqi Belt Conveyor efficiently transports luggage, packages, and general cargo over any distance. Designed as a modular system, it offers exceptional flexibility to meet diverse operational requirements. The basic configuration includes a head drive or central drive, a reversing station, standard round idlers, pass-round modules, as well as support and suspension modules.
Item No :
SQ-FC-12/01Order(MOQ) :
1Payment :
50% deposit, 50% balance against BOLProduct Origin :
ChinaColor :
CustomizedShipping Port :
ShanghaiLead Time :
20 DaysWeight :
500 KGFeature
Structural length
The length of the conveyor is customized, ranging from a short structural length of 1000mm to an extra long length of 16000mm. In addition, the belt width can range from 600mm to 1500mm.
Any height
We can accept any customized height requirements and install adjustable height support feet for the final+-20mm adjustment. Of course, climbing and descending are also no problem.
Easy maintenance
Pre lubricated bearings and optional mechanical pulley accessories, as well as drum drive drums, significantly reduce maintenance difficulty and factory inspection maintenance cycles.
Quick Installation
Due to the use of a simple modular system, the assembly speed is fast and very suitable for transportation.
Efficient
Energy efficient and economical design.
Optional operation control
Optional operational control can be integrated into the drum bearings.
It can also be driven by a drum motor with mechanical belt track accessories.
