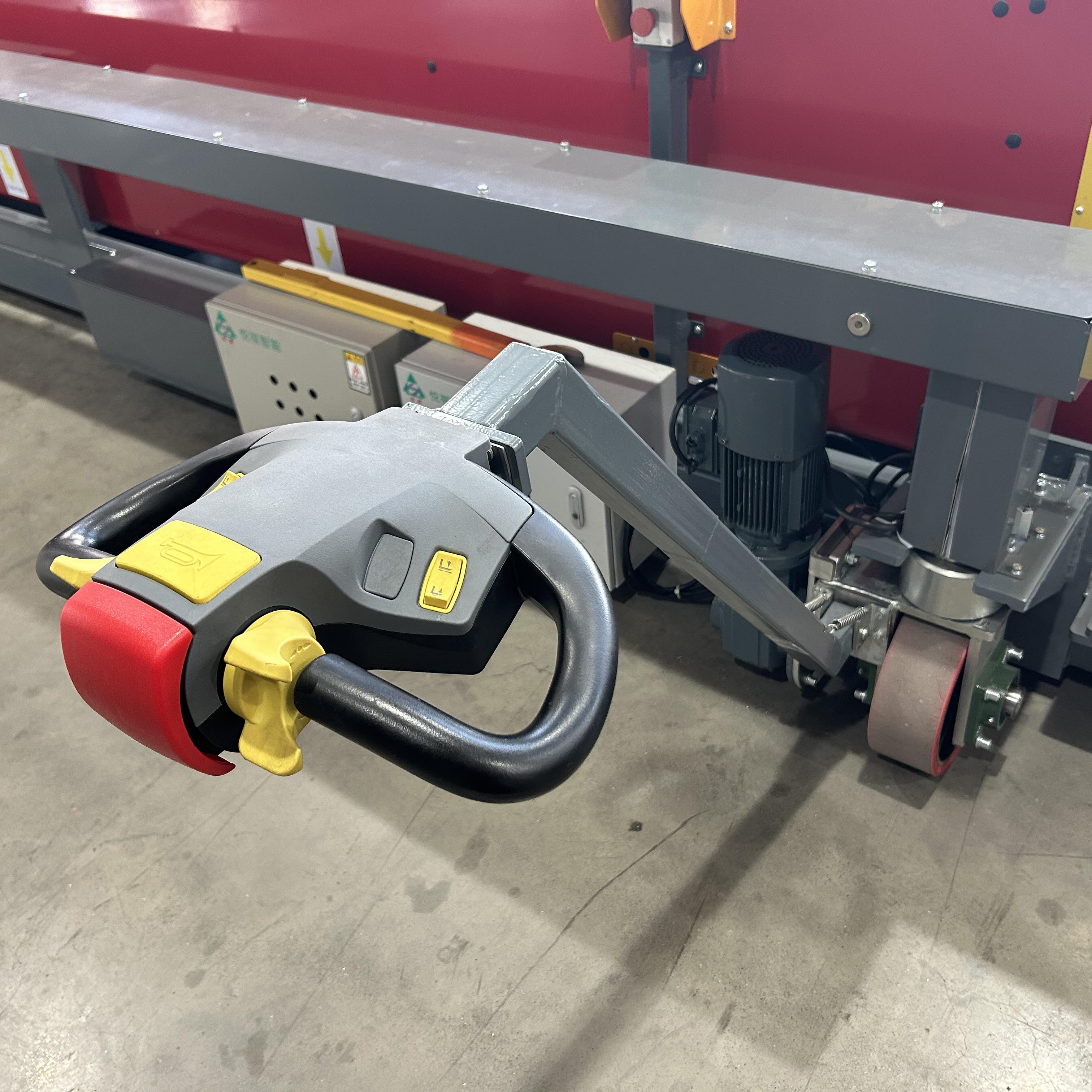

This scheme of setting up the telescopic belt conveyor on an electric moving frame achieves flexible and efficient material handling. The electric base is easy to reposition without the need for multiple fixed conveyors, reducing equipment costs and facilitating more flexible platform planning for warehouses， and MOQ 1 set is sufficient
Item No :
SQ-YD-003Order(MOQ) :
1Payment :
50% deposit ，50% balance against BOLProduct Origin :
ChinaColor :
customizedShipping Port :
ShanghaiLead Time :
40 DaysWeight :
7 tonSQ Telescopic Belt Conveyor – Maximize Efficiency, Minimize Cost
Shuangqi (SQ) specializes in highly customizable telescopic belt conveyors with industry-leading extension length (longest reach in fixed-frame models) and the widest range of standard models.
Why Choose SQ Telescopic Conveyor?
• Cost Advantage: Competitive pricing without compromising durability—direct factory savings.
• Unmatched Extension: Our conveyors extend further than competitors’ same-size models, optimizing workspace.
• Widest Product Range: From compact 5m to heavy-duty 30m+ extensions, covering all logistics needs.
• Professional OEM/ODM: Tailor length, speed, load capacity (up to 80kg/m²), and power options (electric/hydraulic).
• Global Support: MOQ starts at 1 unit with wholesale discounts. Agents & distributors welcome worldwide!
what role does the mobile frame play，what advantages can I expect？
Mobility - Easily move and adjust the conveyor to accommodate different loading points.
Space saving - The telescopic conveyor can be moved to a storage location after use.
High cost-effectiveness - One mobile unit replaces multiple fixed conveyors, reducing investment.
User friendly - Electric drive ensures smooth and precise operation with minimal manual operation.
| Type | Booms | Fixed Length(mm) | Extended Length(mm) | Total(mm) | Belt Width(mm) |
| SQ-2-4/3Y | 2 | 4000 | 3000 | 7000 | 600/800/1000 |
| SQ-3-5/7Y | 3 | 5000 | 7000 | 12000 | 600/800/1000 |
| SQ-3-6/8.6Y | 3 | 6000 | 8600 | 14600 | 600/800/1000 |
| SQ-4-5/10Y | 4 | 5000 | 10000 | 15000 | 600/800/1000 |
| SQ-4-6/12.45Y | 4 | 6000 | 12450 | 18450 | 600/800/1000 |
