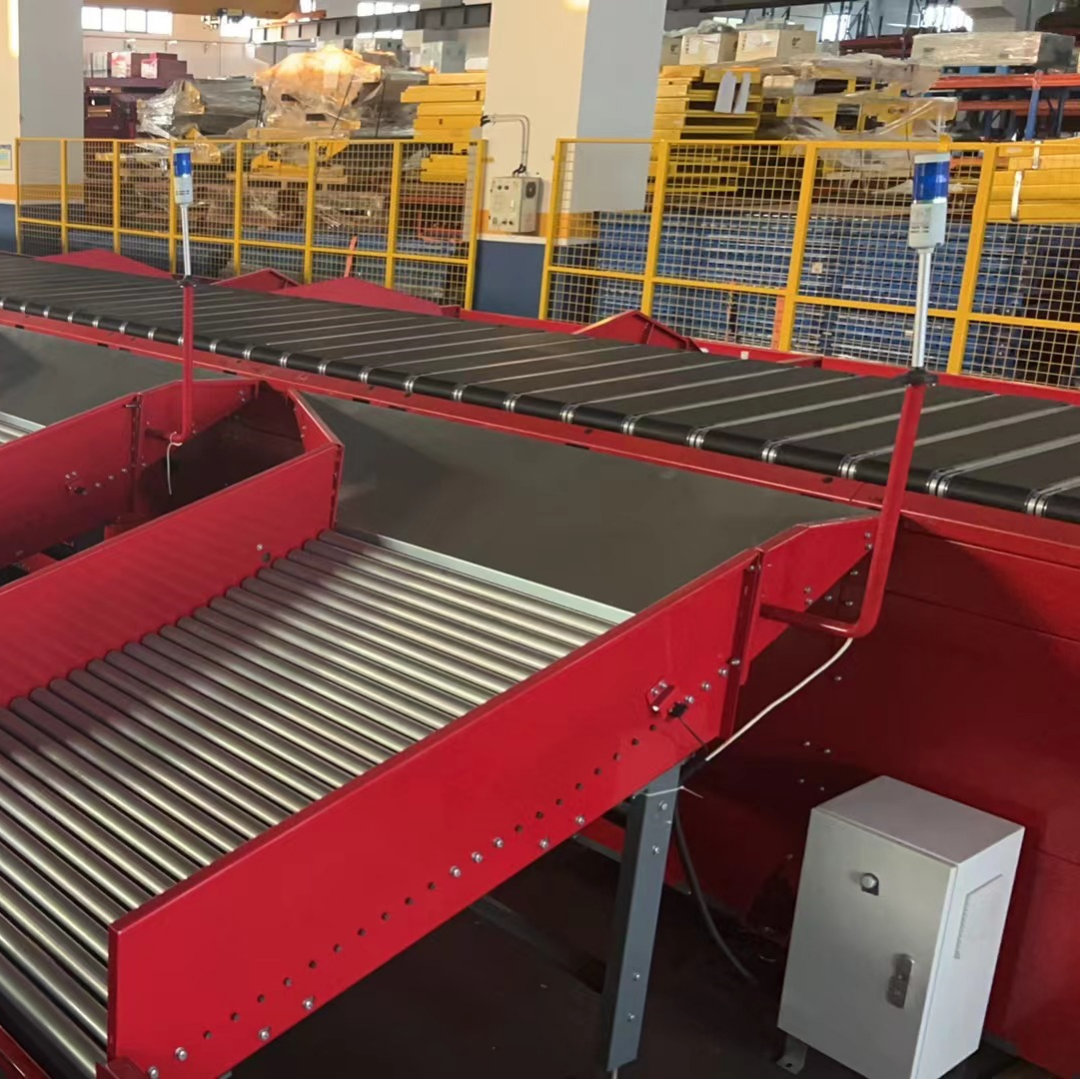

The narrow belt sorter aims to optimize the material flow in all functional areas of the warehouse, providing efficient medium speed sorting and diversion capabilities. Its modular and scalable design ensures seamless adaptation to constantly changing operational needs, making it a future investment for growing facilities.
Item No :
SQ-NS-002Order(MOQ) :
1Payment :
50% deposit ，50% balance against BOLProduct Origin :
ChinaColor :
customizedShipping Port :
ShanghaiLead Time :
60 DaysWeight :
10 TMain functions and advantages
Modular and flexible design: easy to reconfigure to accommodate layout changes or system expansion.
Compact footprint: Save space without compromising performance.
Multi directional sorting: supports bidirectional sorting at 30 ° and 90 °, achieving maximum routing flexibility.
Wide load compatibility: Available in 2, 4, 6, and 10 belt configurations, capable of handling handbags, pallets, cardboard boxes, bags, and more.
Remote sorting capability: By effectively managing extended travel distances within a single system, the need for multiple sorting machines is eliminated.
Ideal application
Receiving and shipping sorting - simplifying the incoming/outgoing process.
Automated storage integration seamlessly connects with AS/RS and workstations.
Regional routing and order fulfillment - improve picking and delivery efficiency.
Whether optimizing existing workflows or planning for future growth, narrow belt sorter provide a reliable, adaptable, and high-performance solution for modern warehouse operations.
| Serial | Item | Parameter | Remark |
| 1 | Dimensions |
L（customized） W1585 mm H（customized） |
H≥1000 mm |
|
2
|
Sorting efficiency | 6000~8000 PCS/H | |
| 3 | Operating speed | 2~2.5 m/s | |
| 4 | Motor power（group） | 2 KW | |
| 5 | Car pitch | 200 mm | |
| 6 | Belt size | 1200*158 mm | |
| 7 | Parcel size |
Min：160*80*15 mm Max：1000*800*800 mm |
Carton, woven bag, irregular parts |
| 8 | Parcel weight | 0.3～60 KG | |
| 9 | Working environment | -20 ~ 45°C | |
| 10 | Max noise | ≤72dB | |
| 11 | Load capacity |
Dynamic load ≥ 70 Static load ≥ 200≥70 |
