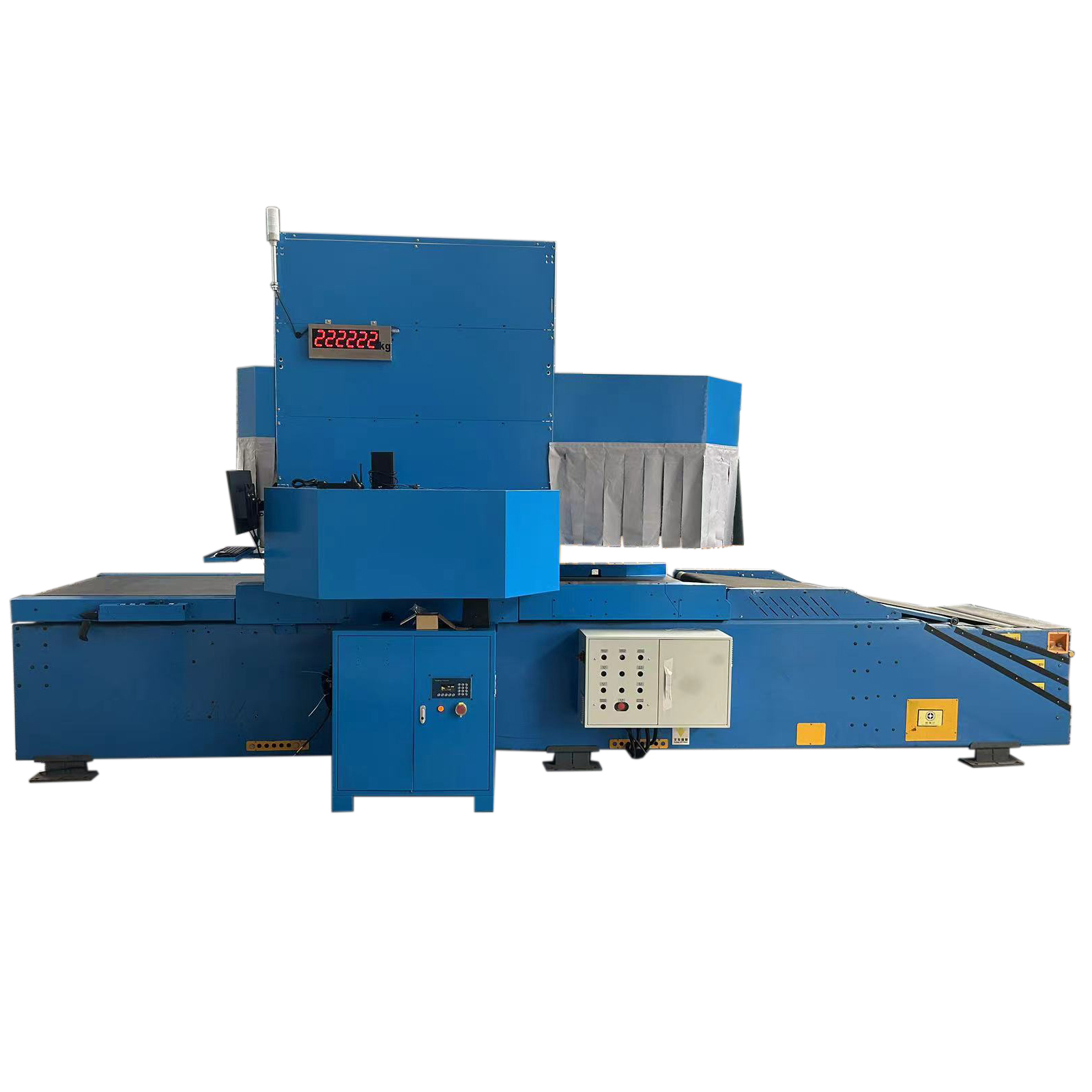

The Dimensioning, Weighing, and Scanning (DWS) System is an automated logistics solution that measures parcel dimensions, weight, and scans barcodes in real time. Using sensors, cameras, and advanced algorithms, it captures accurate volumetric data (L×W×H), weight, and tracking info without manual handling.
DWS systems are widely used in e-commerce, warehouses, and courier services to enhance throughput and operational precision.
Item No :
SQ-DWS-004Order(MOQ) :
1Payment :
50% deposit， 50% balance against BOLProduct Origin :
ChinaColor :
CustomizedShipping Port :
ShanghaiLead Time :
40 DaysWeight :
2000
What is DWS system?
The Dimensional, Weighing, and Scanning (DWS) system is an advanced logistics solution that automatically measures package size, weight, and barcode scanning. By integrating sensors, cameras, and software, it can capture accurate data in real-time, eliminate manual errors, and simplify operations.
Key interests
Use case
Why choose DWS?
With the rapid development of e-commerce, logistics requires faster and error free processing. Our DWS system improves productivity, reduces costs, and enables your operations to withstand future tests, keeping you competitive in a dynamic market.
| Serial | Item | Parameter |
| 1 | Min size(mm) | L 200 * W 140 * H 30 |
| 2 | Max size(mm) | L 1000 * W 800 * H 300 |
| 3 | Min weight(kg) | 0.1 |
| 4 | Max weight(kg) | 60 |
| 5 | Error precision(kg) | +-0.05 |
| 6 | Recognizable barcode | Barcode & QR code |
| 7 | Barcode accuracy | ≥10mil |
| 8 | Processing speed | ≥2800 pcs/h(test package) |
| 9 | Recognition Rate | ≥99.5%(test package) |
| 10 | Communication interface | TCP/IP (supports wireless, wired) |
